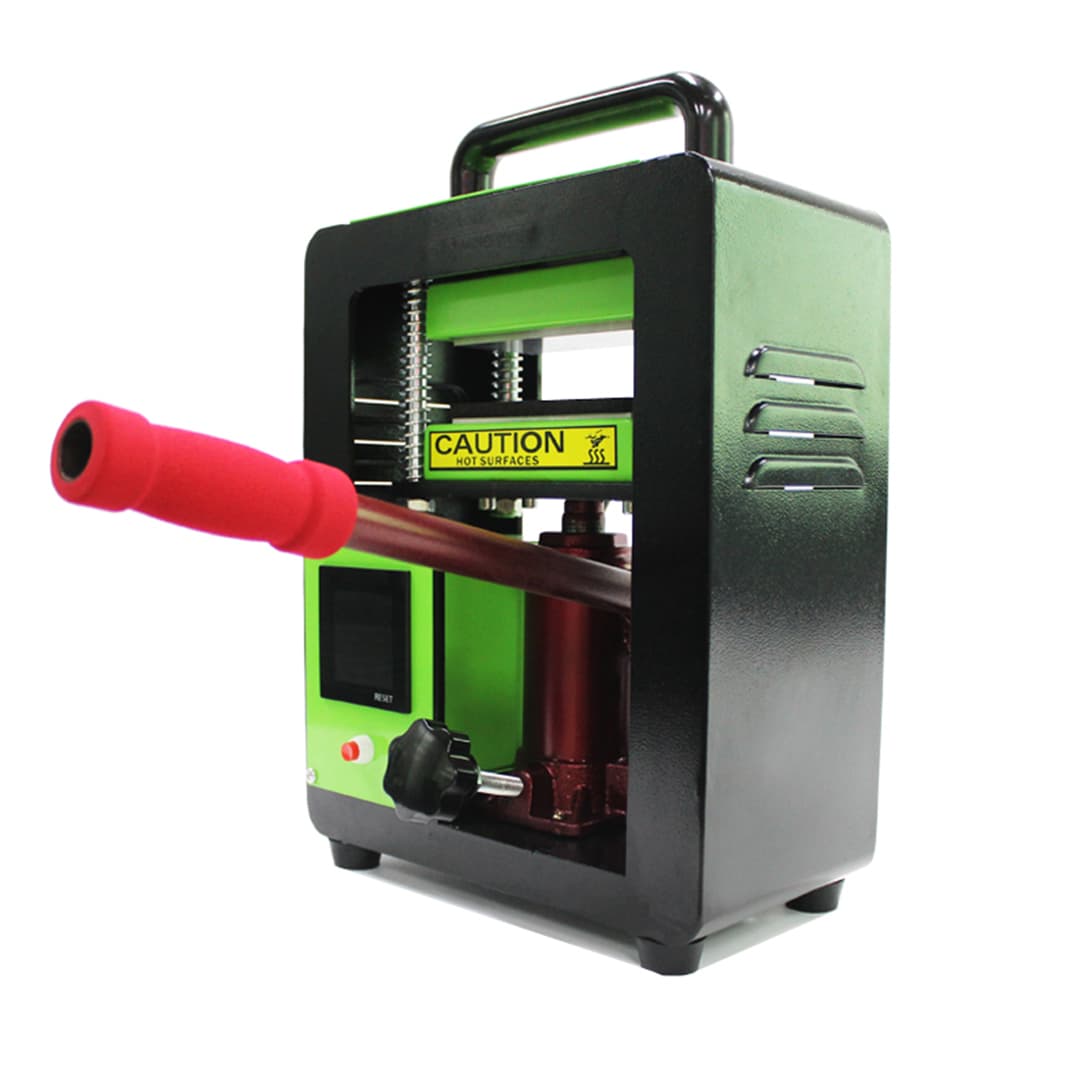

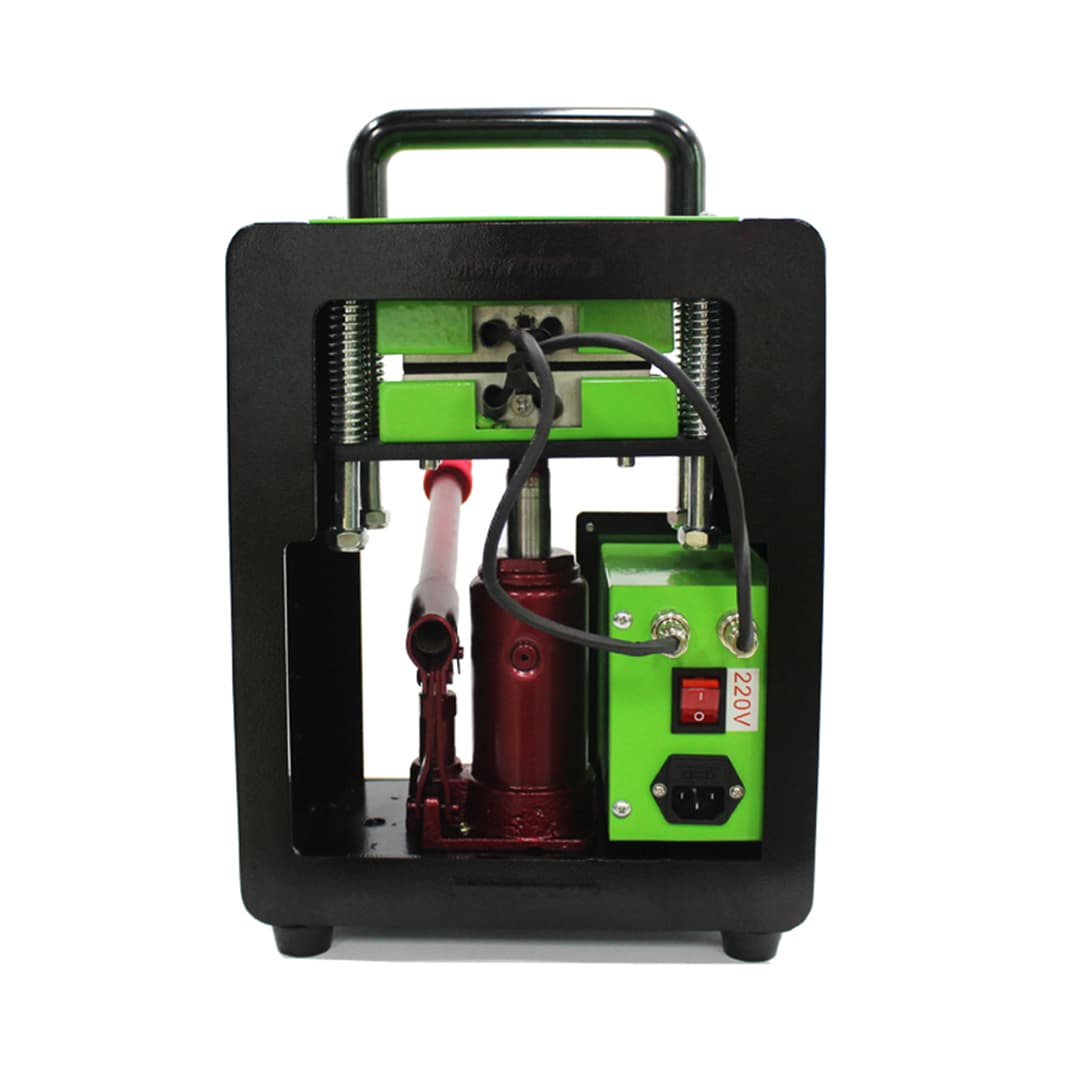

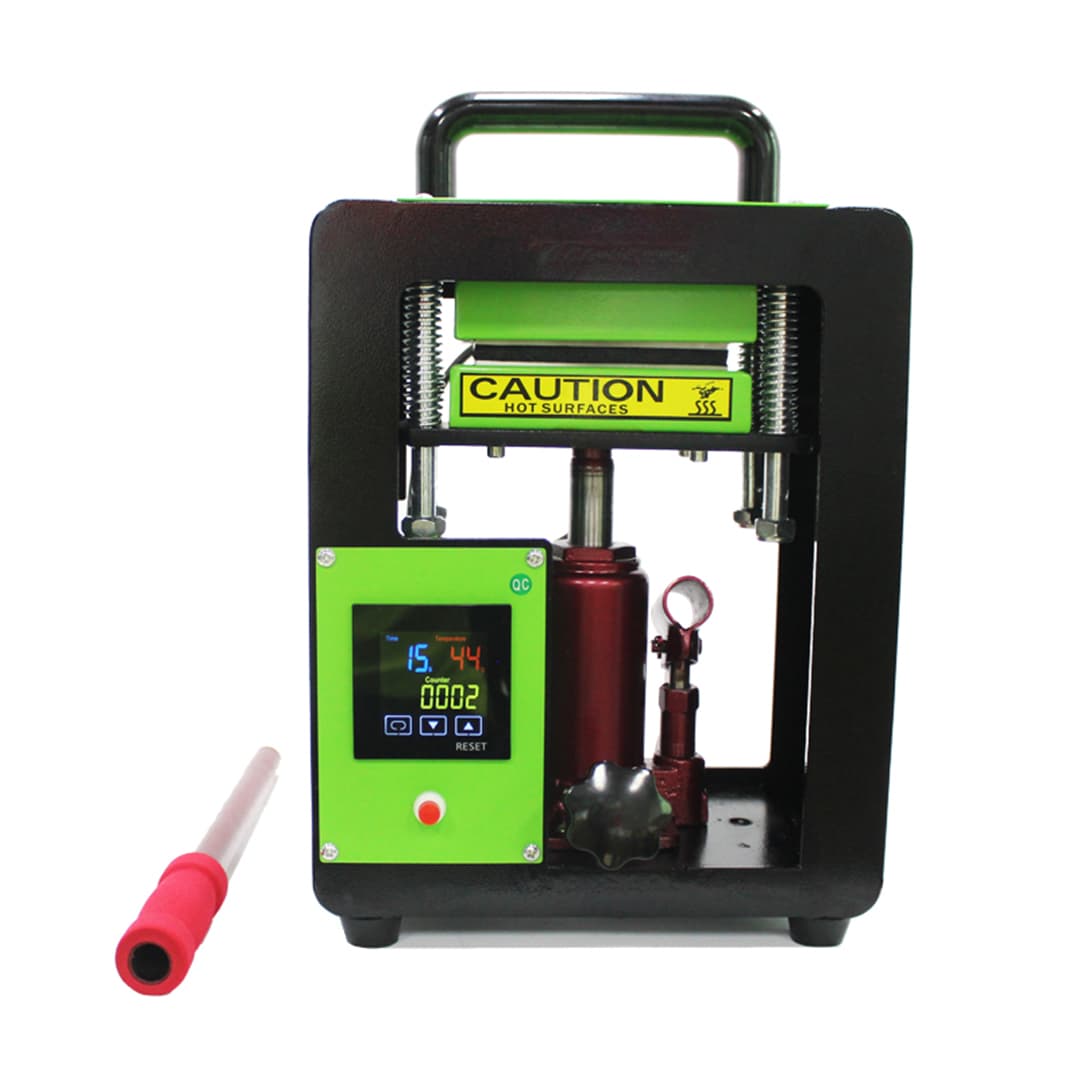

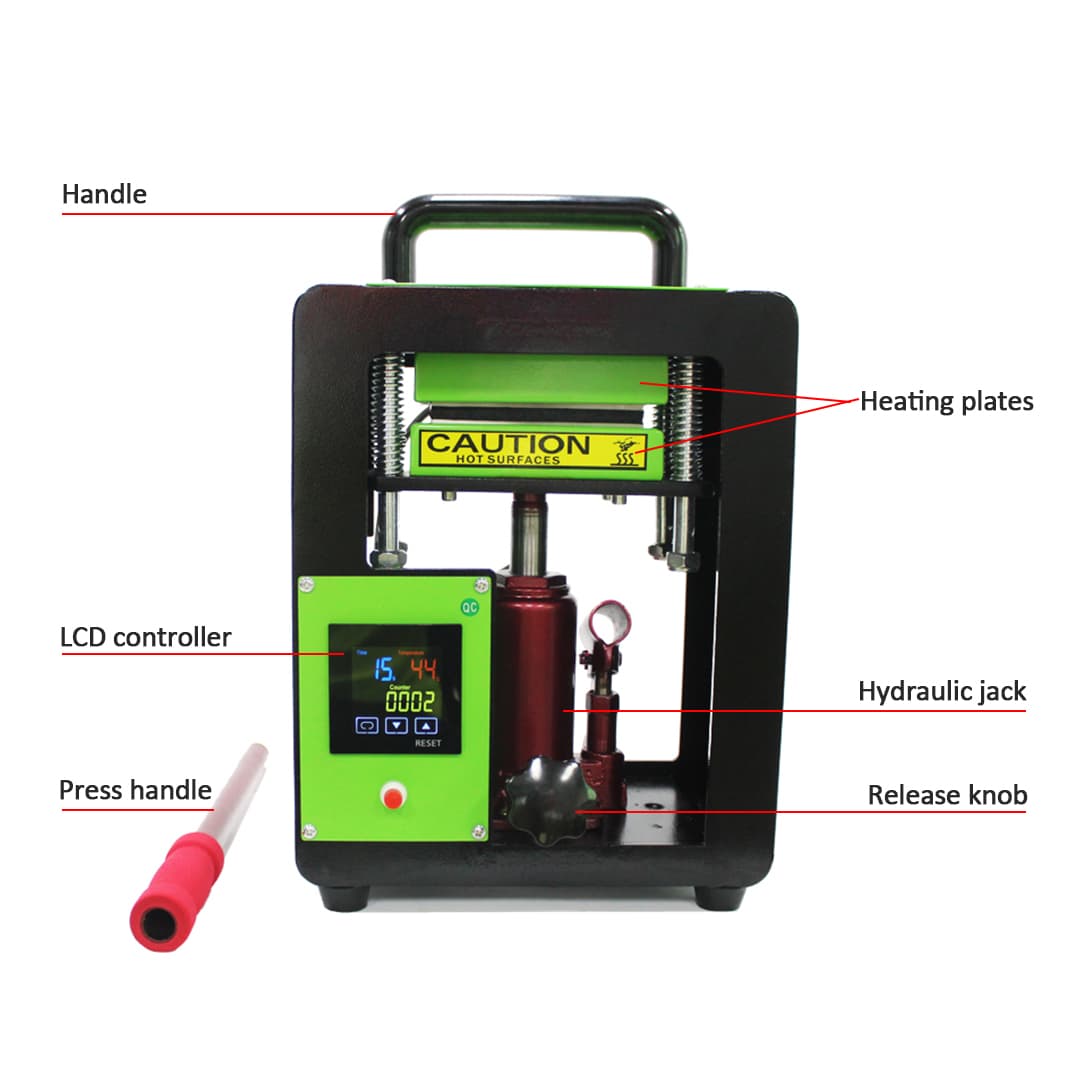

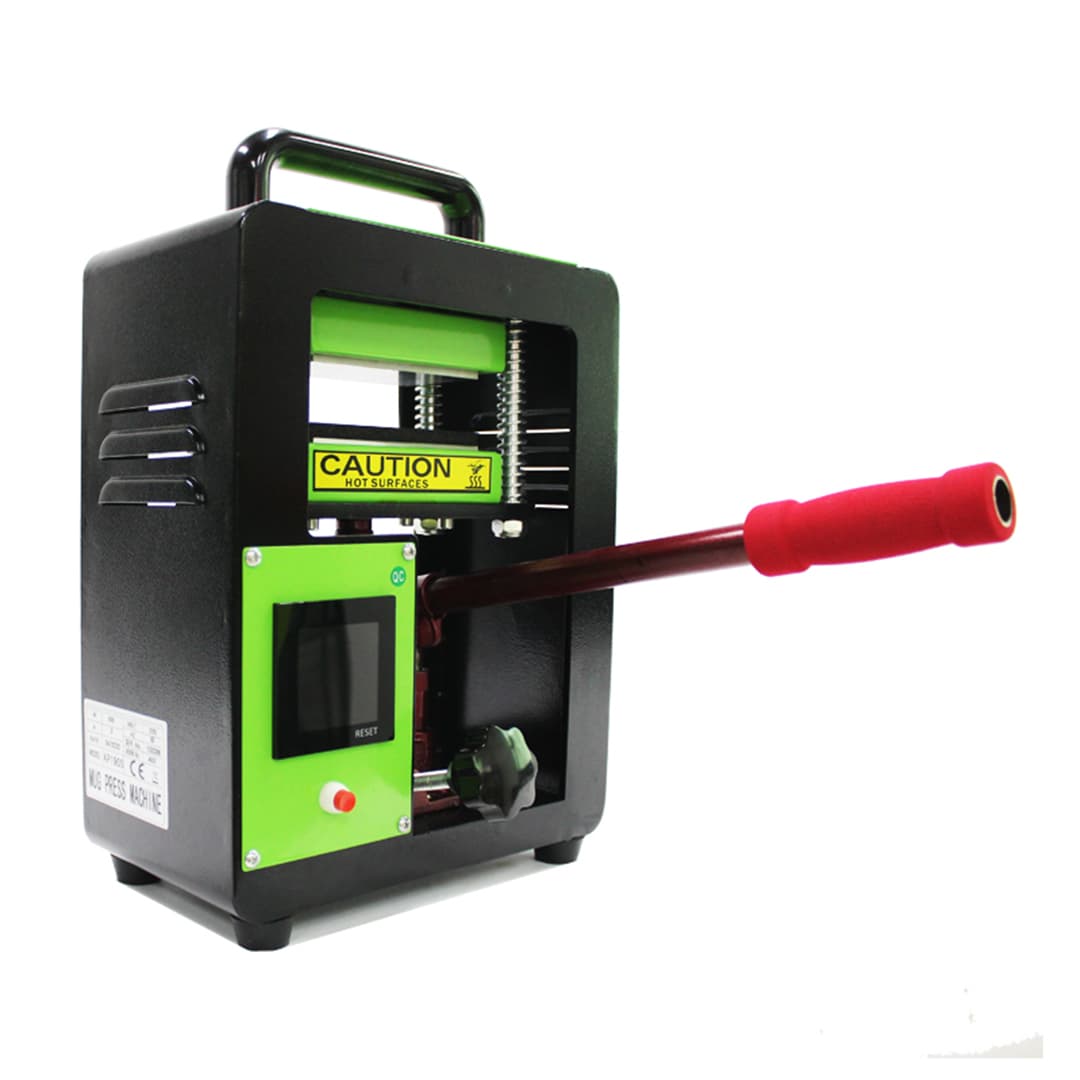

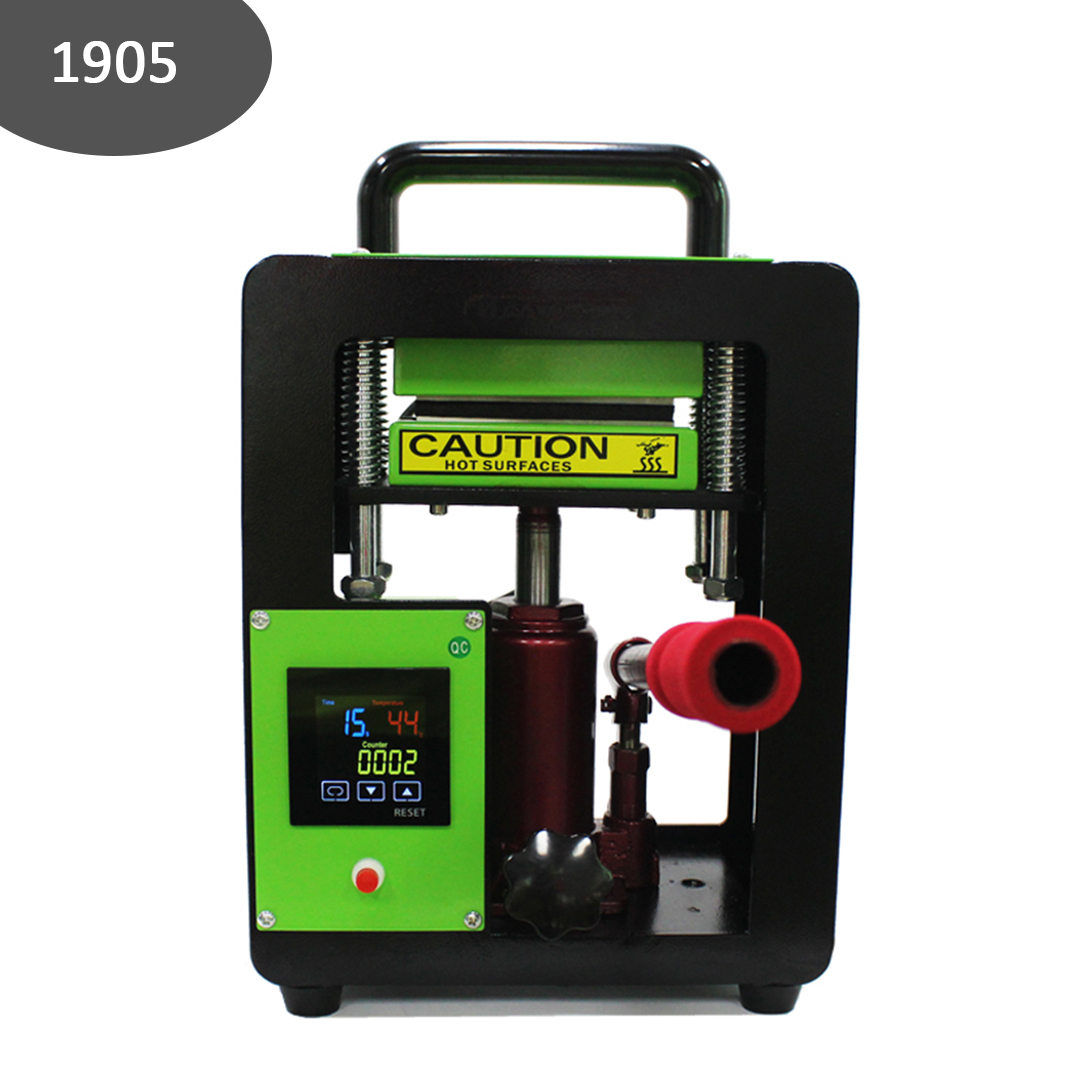

1905 MANUAL ROSIN HEAT PRESS MACHINE

The 1905 rosin press machine is designed for efficient and reliable performance. It is equipped with a 4 cm thick solid aluminum heating element, which provides even heat distribution and a smooth surface, with a heating plate size of 6 × 12 cm (2.4" × 4.7"). The machine comes with a 5-ton manual hydraulic jack, delivering strong pressing force for high-pressure oil extraction. It also features an advanced touch-screen display, capable of showing accurate temperature and time readings, ensuring precise control and excellent performance. The production process has been continuously improved and tested through numerous durability tests, making the machine more reliable and easier to use. In addition, the efficient heat dissipation design helps release excess heat during operation, preventing overheating and reducing the risk of burns. All machines are certified with CE and RoHs standards, and every component undergoes strict quality inspection to ensure dependable performance and product quality.

Pressing Guides

1.Make sure the power plug is well connected to the wall socket, then press the power switch to turn on.

2.Set the temperature and the time you want（See the temp&time setting sheet）

3.When the temperature reaches the setting temperature, place the object on press bed.

4.Press down the handle, adjust the pressure know to get the pressure you need.

5.The buzzer will sound when the scheduled time is up, then lift up the handle.

Maintain Note:

1.Different item will require different temperature and time setting because the materials or thickness is different.

2.This machine is not suitable for children to use or for food processing.

3.Please turn off the machine and unplug the power cord when the machine is not in use.

4.The heat plate will automatically cool down to the room temperature if the heat press stays non-use for more than 30 minutes.

5.The heat-releasing fan will automatically starts when the temperature of heat plate reaches 80 °C (176 °F). It helps to reduce the temperature of electrical parts and prolong the service life of them

Troubleshooting:

No action after turn on the machine.

1.Check the plug whether it connects well or whether it is broken.

2.Check the fuse whether it has been burnt out.

3.Check the power switch or digital controller whether it is broken.

Indicating light is on but the display screen is black.

Check the 5 cable of railway transformer. The connection is poor if it is loose, just fix it. The transformer may be faulty if the cable is well connected just fix it.

The display screen is working well but the temperature is not heating up.

1.Check if the indicating light of solid-state relay is on, if not, please check whether the relay or digital controller is broken.

2.The heat platen still can’t heating up if you already changed the new solid-state relay, please check whether the heat plate is faulty or the heat plate’s power cable is loose, if so,it will need to change a new heat plate.

The temperature is out of control: Set temperature 180°C (356°F)，but the actual temperature is above 200°C (392°F)

1.It means the solid-state relay is broken, out of control, need to change a new relay.

2.Or the digital controller is faulty, need to change controller.
