Specifications: Corresponding color micron bags are labeled for proper order. The smaller micron screen is, the less crystals escape, the better filter performance you will get.
| MICRON SIZE | CODED COLOR | CODED COLOR IMAGE | MICROMETER IMAGE | BAG USES |
| 25 Micron Bag | Purple-Food Grade |  |
 |
Suitable for high-precision filtration, effectively intercepting fine particles, ideal for fine plant extraction. |
| 45 Micron Bag | White-Food Grade |  |
 |
Suitable for high-precision filtration, effectively intercepting fine particles, ideal for fine plant extraction. |
| 73 Micron Bag | Yellow-Food Grade |  |
 |
High filtration precision, suitable for extraction filtration of most plant powders or finely crushed materials. |
| 90 Micron Bag | Black-Food Grade |  |
 |
Balances filtration efficiency and flow rate, suitable for extraction of conventional plant raw materials. |
| 120 Micron Bag | Orange-Food Grade |  |
 |
Suitable for filtration of coarse particles, with a faster flow rate and reduced clogging. |
| 160 Micron Bag | Red-Food Grade |  |
 |
Suitable for coarse filtration or pre-filtration stages, improving overall extraction efficiency. |
| 190 Micron Bag | Green-Food Grade |  |
|
Suitable for coarse filtration or pre-filtration stages, improving overall extraction efficiency. |
| 220 Micron Bag | Blue-Food Grade |  |
|
Primary work bag- Used for initial extraction and bulk material holding. |
These filter sets come in two material options:
CANVAS & MESH with nylon canvas sides and mesh bottoms
ALL MESH with both sides and bottoms made of mesh.
- Material: Canvas & Mesh / All Mesh
- Bag Volume: 1 Gallon ,5 Gallon ,10 Gallon , 20 Gallon , 32 Gallon ,
- Bag Mesh Sizes：25,45, 73, 90, 120, 160, 190, 220 microns
- Included Components: 10”*10” Pressing Screen*1, Carrying Bag*1
Manufacturer: EXTRACTLAB

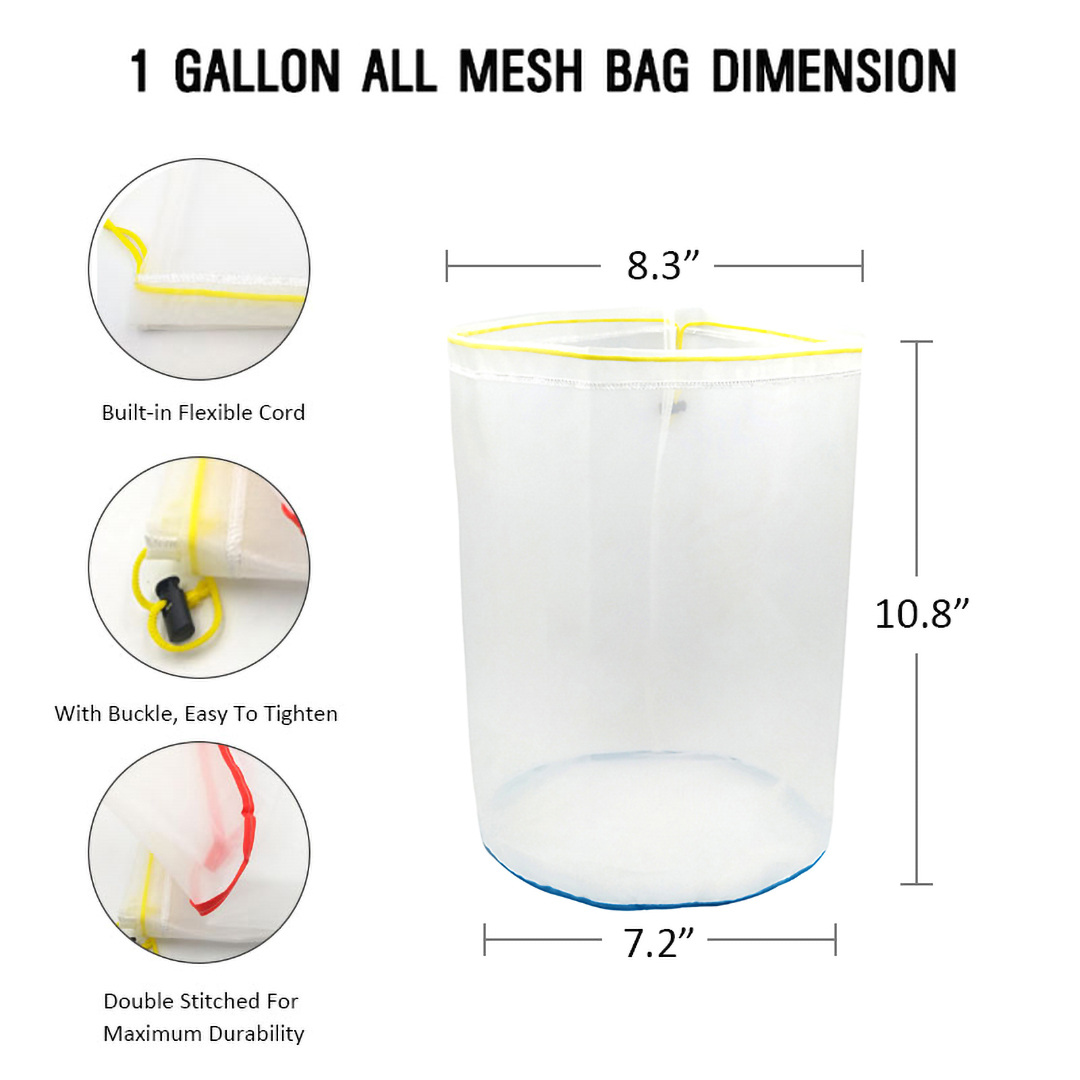

- 1 Gallon= Top Dia.8.3”*7.2”*10.8”
- 5 Gallon= Top Dia.12.5”*12”*16.8”
- 10 Gallon= Top Dia.15.5”*14.5”*23”
- 20 Gallon= Top Dia.21”*17.2”*30”
- 32 Gallon= Top Dia.22.5”*18.6”*29.2”
Features：
1.Made with high-quality, food-grade materials to ensure long-lasting performance and safety.
2.Triple stitched 100% nylon bonded thread for extra strength
3.Each wash bag stack comes with a collection screen as well.
4.Bags feature a drawstring closure at the top, allowing for easy and secure attachment to the rim of a bucket, ensuring convenience and safety during use.
Instructions:
- Line your extraction bags into the bucket, starting with the 25 micron bag and ending with the 220 micron bag.
- Fill the bucket about halfway full with enough cold water to cover the bottom of the extraction bags.
- Add your dry or frozen plant trimmings. Fill your bucket almost to the top with enough ice.
- Begin stirring the ice and plant trimmings for about 15 to 20 minutes, and let it sit for 30 minutes. Adding ice if necessary to keep the water cold.
- Pull out your extraction bags one by one, draining them into the bucket.
- As you pull each extraction bags, turn it inside out after it has finished draining to collect your herbal extract.
- Remove the excess moisture using the pressing screen and a tea towel, and use your new herbal extract.
Bubble Bag Care & Cleaning
1.Always rinse the bags thoroughly with cold water immediately after use.
Do not use warm or hot water, as this will clog the screens.
2. Repeat if necessary.
3. Hang the bags and always allow to air dry completely before storing them to prevent mold or rot issues.
*For heavy stains, soak overnight, then repeat step 1.
* Never use detergent or solvents.
*If your screens become clogged, you can use 99% isopropyl alcohol on a soft toothbrush to
gently remove tough stains.
Keep alcohol away from edge of screen (stitching).
